ESP Async HTTP Update Server

This is an advanced version ESP8266HTTPUpdateServer/ESP32's HTTPUpdateServer library, modified to be compatible with ESPAsyncWebServer and also add optional Styling 🌈 to the page.

It will provide a webpage for updating the firmware/filesystem of ESP8266 or ESP32 microcontrollers.

[!IMPORTANT] If you found this library helpful, please consider leaving a Star⭐

It helps a lot in maintaining the project ❤️

Features

• Supports:
  • ESP8266
  • ESP32
• Can Update:
  • Firmware
  • FileSystem
• Styling:
  • Stylized (Additional ~350 bytes)
  • Minimal
• Update modes:
  • Firmware + FileSystem
  • Firmware only
  • FileSystem only
• Update route customization (default: /update)
• Update credentials customization (default: No credentials)
  • Username
  • Password
• Update Events:
  • onUpdateBegin
  • onUpdateEnd
• Force Aborting Update using events
• FileSystem Options:
  • SPIFFS
  • LittleFS

HowTo

Install

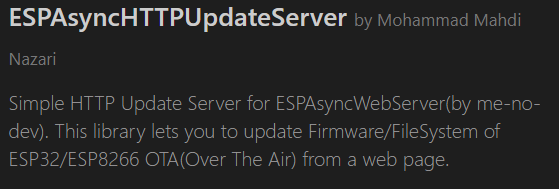

This Library is available in Arduino Library Repository and PIO and you can install it from:

Arduino IDE Library Manager	PlatformIO Libraries

ipdotsetaf/ESPAsyncHTTPUpdateServer@^3.0.0

Setup

1. Include the library after ESPAsyncWebServer.h

#include <ESPAsyncWebServer.h>
#include <ESPAsyncHTTPUpdateServer.h>

2. Create an object from ESPAsyncHTTPUpdateServer

ESPAsyncHTTPUpdateServer updateServer;
AsyncWebServer server(80);

3. Setup the update server before starting the webServer

updateServer.setup(&server);
server.begin();

Custom Route

updateServer.setup(&server, "/customroute");

Credentials

updateServer.setup(&server, "username", "password");

or

updateServer.setup(&server, "/customroute", "username", "password");

Events

updateServer.onUpdateBegin = [](https://raw.githubusercontent.com/IPdotSetAF/ESPAsyncHTTPUpdateServer/refs/heads/master/const UpdateType type, int &result)
    {
        //...
    };

updateServer.onUpdateEnd = [](https://raw.githubusercontent.com/IPdotSetAF/ESPAsyncHTTPUpdateServer/refs/heads/master/const UpdateType type, int &result)
    {
        //...
    };

Aborting the update

updateServer.onUpdateBegin = [](https://raw.githubusercontent.com/IPdotSetAF/ESPAsyncHTTPUpdateServer/refs/heads/master/const UpdateType type, int &result)
    {
        result = UpdateResult::UPDATE_ABORT;
    };

Styling and Customizing OTA Page

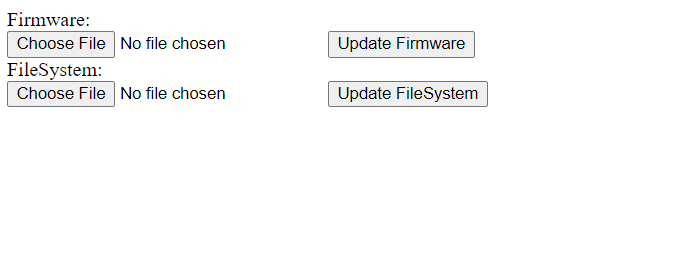

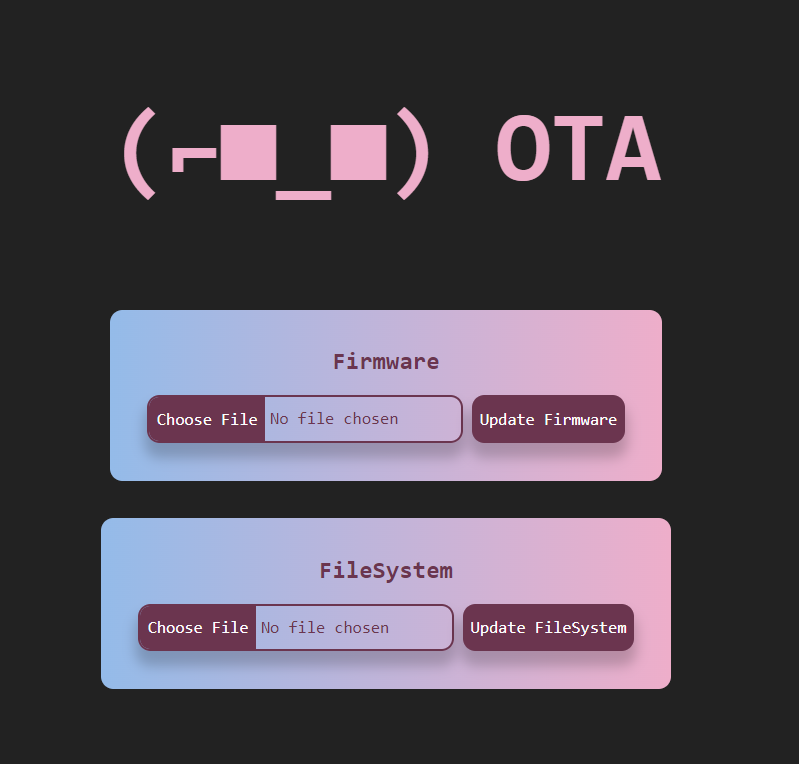

Stylized	Minimal

[!IMPORTANT] By default styling is disabled to save ~350 bytes of flash memory.

You can enable the styling by adding the -DESPASYNCHTTPUPDATESERVER_PRETTY Build Flag to your environment.

Customizing OTA Page

[!IMPORTANT] Add the -DESPASYNCHTTPUPDATESERVER_MODE Build Flag with desired value to choose different update mode. Choose the right value based on your needs from bellow table:

Update mode	value
Firmware and FileSystem	0
Firmware only	1
FileSystem only	2

Modifying Htmls

in case you liked to modify the html of any of the pages, you need to run the scripts/codeGenerator.py afterwards so html contents get processed and placed in the source.

Instructions:

1. Make sure you have python installed
2. In your python environment run the following
3. pip install -r requirements.txt
4. python codeGenerator.py

Selecting FileSystem

[!IMPORTANT] The library's default fileSystem is SPIFFS but if you are using LittleFS for your FileSystem, make sure to add the -DESPASYNCHTTPUPDATESERVER_LITTLEFS Build Flag to your environment.

Debugging

[!TIP] To debug the library functionality, you can add the -DESPASYNCHTTPUPDATESERVER_DEBUG Build Flag to your environment.

This will enable the library to print logs to the Serial.

[!TIP] If you are using another Serial port, you can override the default serial by adding the -DESPASYNCHTTPUPDATESERVER_SerialOutput=Serial1 Build Flag to your environment.

Server Working Example

Please refer to this fully working example

TODO:

• Custom CSS support
• Synchronous WebServer support

Contribution

• You can open Issues for any bug report or feature request.
• You are free to contribute to this project by following these steps:
  1. Fork this Repo.
  2. Create a new branch for your feature/bugfix in your forked Repo.
  3. Commit your changes to the new branch you just made.
  4. Create a pull request from your branch into the master branch of This Repo(https://github.com/IPdotSetAF/ESPAsyncHTTPUpdateServer).
